Ⅰ.Machine Description

This machine is suitable for soft pumping paper / hood / party bag / napkin / towel paper and paper packaging, using advanced PLC computer programming control, folding fork angle, seal as a whole, horizontal flat packing mode of operation, conveyor belt heated to high temperatures, sealing both ends of the flat, packing effects more full.

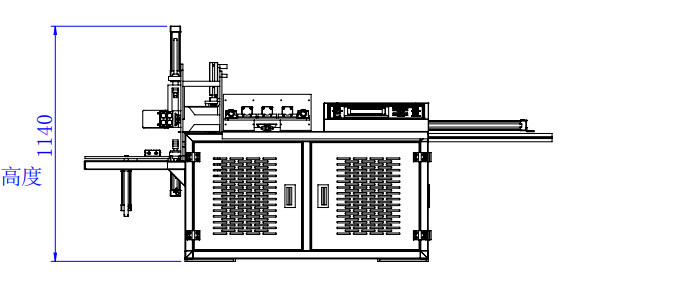

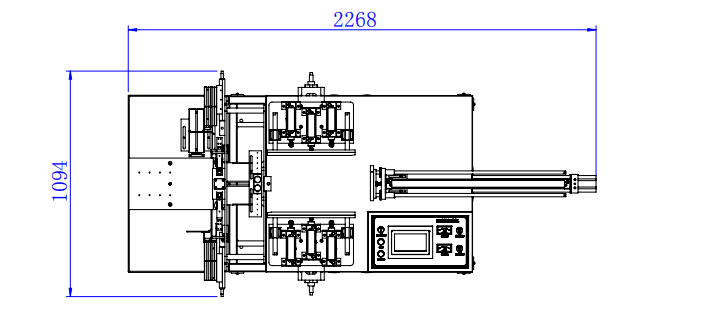

Ⅱ.Schematic diagram

Dental Pad Packing Machine production procedure:

Fabric feeding — Packing – Sealing and cutting – output

III. Machine characteristics

Features

1. 1.machineoperation is very simple and convenient

2. One person operation is ok.

3.Use cylinders to push and lift

5.Main Electrical configuration

item	name	quantity	Origin	PIC
1	Feeding device	1 set	China
2	Pneumatic device	2sets	China
3	Packing and Sealing device	1set	China
4	PLC device and Operation panel	1set	China
5	Air cylinder	1 set	China
7	Conveyor device	1 set	China
13	Electric meter box	1set	China

6. Spare parts list：

No.	Item Name	Quantity	Photo
1	Screwdriver	2pcs
2	hexagonal wrench	1set
3	adjustable wrench	1set
4	Screws and nuts	Bulky
5	Oil bottle	1pc
6	Tool box	1pc
