Disposable bed sheet with elastic folding machine

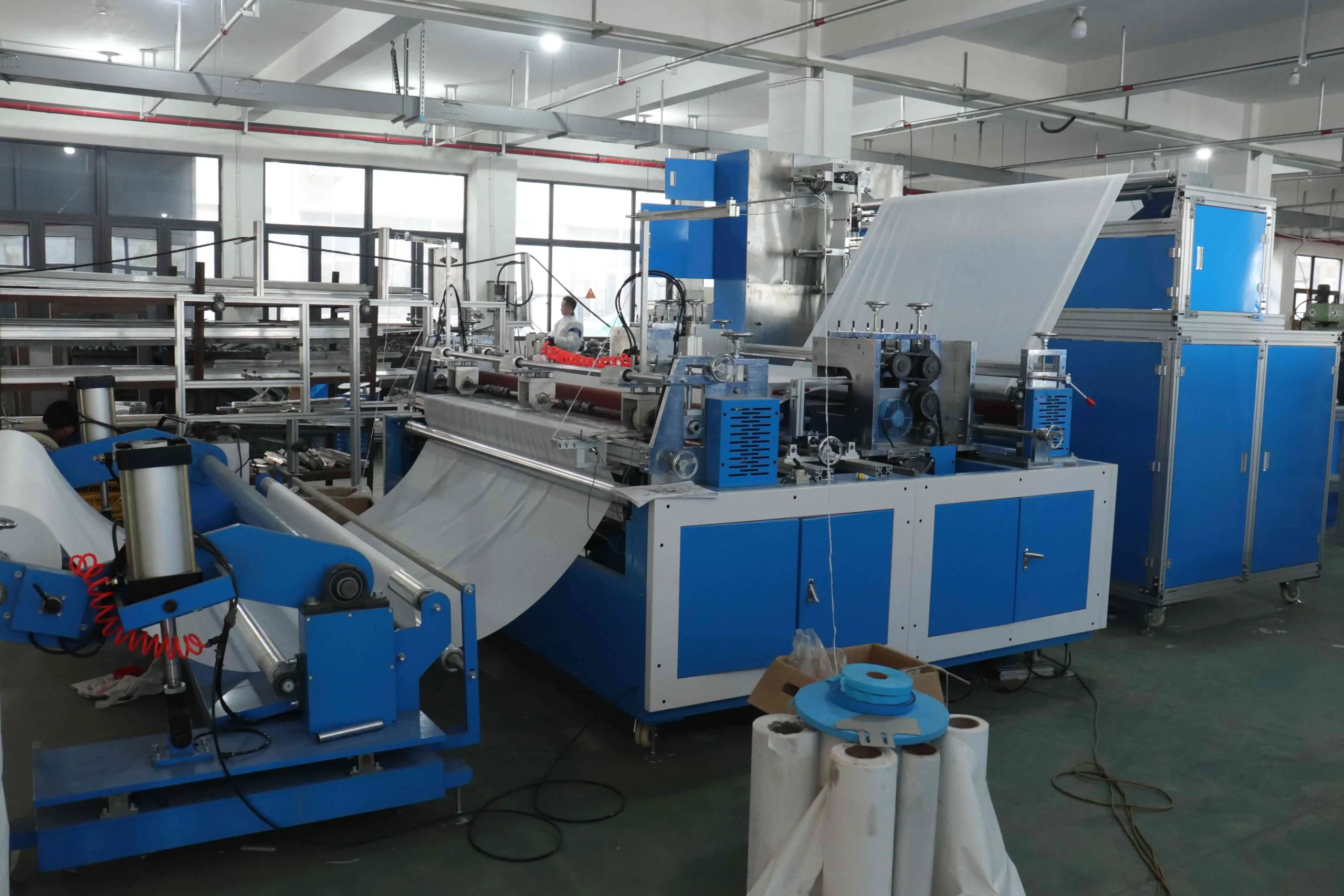

1.Disposable bed sheet folding machine

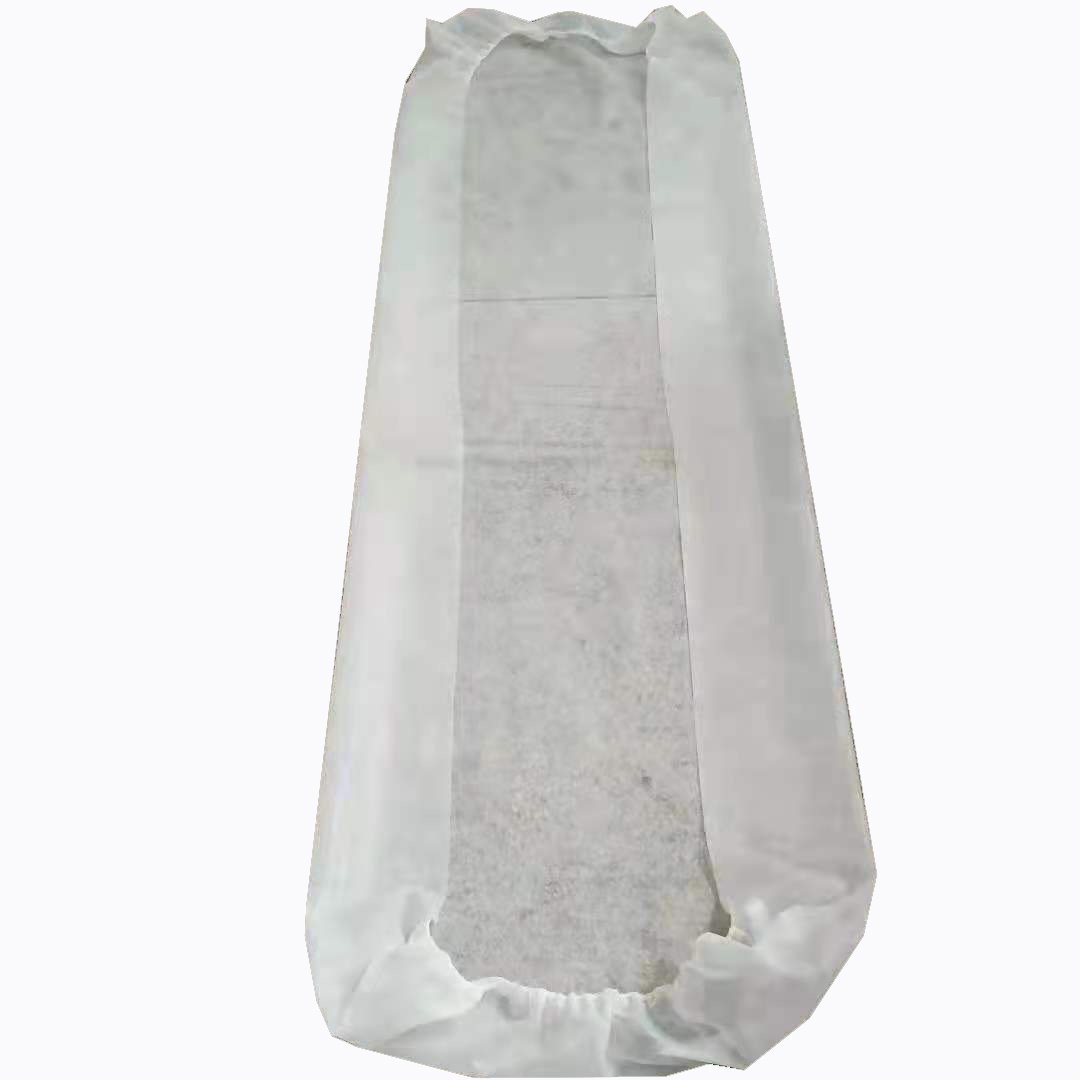

Our Disposable Bed Sheet with Elastic Folding Machine is designed for producing high-quality nonwoven bed sheets with elastic edges, commonly used in hospitals, beauty salons, hotels, massage centers and hygiene product factories.
The machine integrates cutting, elastic inserting, ultrasonic sealing and multi-folding processes into one continuous line, allowing factories to replace labor-intensive manual work with stable and efficient automation.
It supports PP, PE, SMS and other nonwoven materials, and the bed sheet size, folding pattern and elastic length can all be customized based on customer requirements.
2.Material Report
| NO | Material | Diameter (mm) | Tube Diameter (mm) |
Width (mm) | Thickness (mm) |
| 1. | non woven | 500-1000 | Φ76.2 | 2050-2500 | 25-45gsm |
| 2. | Elastic band | 4mm | 12.5kg/ctn |
3.Main machine feature:
Fully Automatic Production Line
integrates material feeding, cutting, elastic inserting, sealing and folding—greatly reducing manual labor.
High-Accuracy Elastic Inserting System
keeps elastic tension stable and ensures tight and uniform sealing around the entire sheet.
Servo & PLC Control System
ensures stable running, precise synchronization and easy parameter changes from the touch screen.
Precision Folding Structure
supports 2-fold, 3-fold or customized folding formats depending on packaging requirements.
Ultrasonic Sealing Technology
provides strong, clean and durable sealing without glue or chemicals.
Nonstop Production with Low Labor Cost
requires only 1–2 operators, suitable for high-volume orders in hospitals or beauty chain stores.
Size and Elastic Length Customizable
easy to adjust for different bed sizes such as 70×180 cm, 80×200 cm, 90×240 cm, etc.
Remote Support & Easy Maintenance
technical team can assist with online troubleshooting, parameter optimization and mechanical setup.
Main machine configuration:
| Item | Specification |
|---|---|
| Machine Name | Disposable Bed Sheet with Elastic Folding Machine |
| Material | PP / PE / SMS Nonwoven Fabric |
| Bed Sheet Size | Customizable (e.g., 70×180 cm, 80×200 cm, etc.) |
| Elastic Insert | Full edge / Two sides / Custom |
| Speed | 15–25 pcs/min (Depends on sheet size) |
| Sealing Method | Ultrasonic sealing |
| Folding Style | 2-fold / 3-fold / Custom |
| Control System | PLC + Touch Screen HMI |
| Cutting Method | Cold or ultrasonic cutting |
| Power Supply | 380V / 50–60Hz |
| Air Requirement | 0.5–0.6 MPa |
| Machine Weight | Approx. 1200–1600 kg |
| Machine Dimensions | 6500 × 1600 × 1700 mm (Adjustable) |
