Ⅰ.Machine Description

Disposable non woven slipper making machine has automatic feeding system, automatic upper folding positioning system, ultrasonic welding system and rolling cutting mechanism, photoelectric detection system etc.It is advanced and reliable in technology, simple and safe in operation. It will completely replace the old complex process flow, save labor costs for users, reduce environmental pollution, improve product quality and output, and cover a small area, which is economical and practical. It also can add printing function according to your requirement.

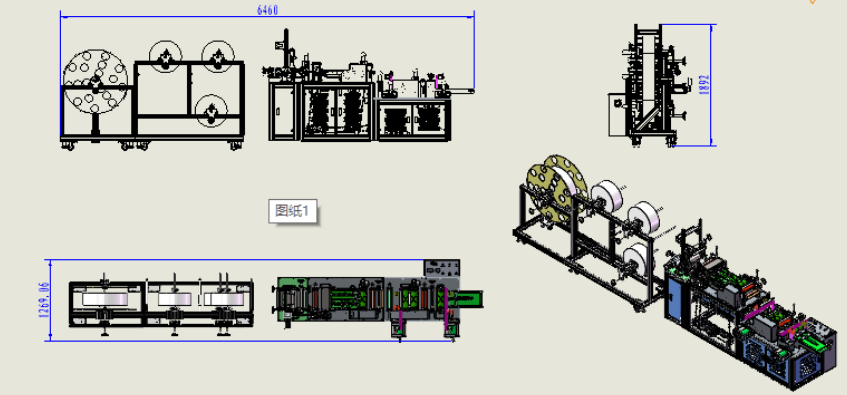

Ⅱ.Schematic diagram

Machine process:

Material feeding – traction – welding and forming – cutting – conveyor belt output

2. Features

1. Using the ultrasonic and special steel roller,sewn without thread&heating.
2. Use separate steel cutting mould,10times longer life than traditional model.More flat,more beautiful,      no wrinkles.
3. Machine with auto-ultrasonic welding function,more efficiency and easy operation.

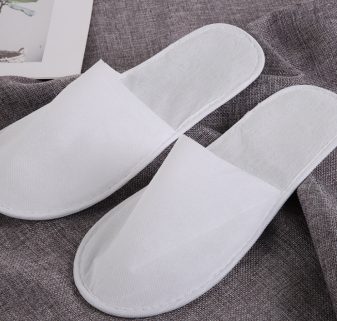

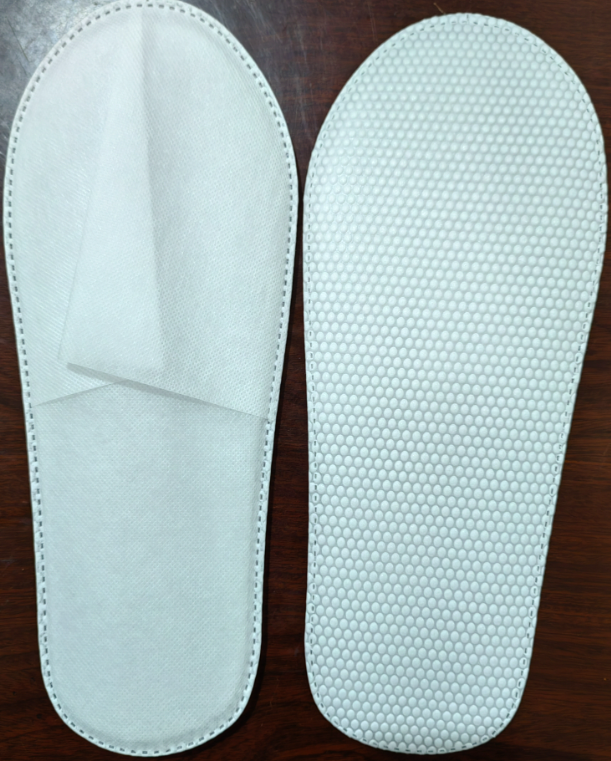

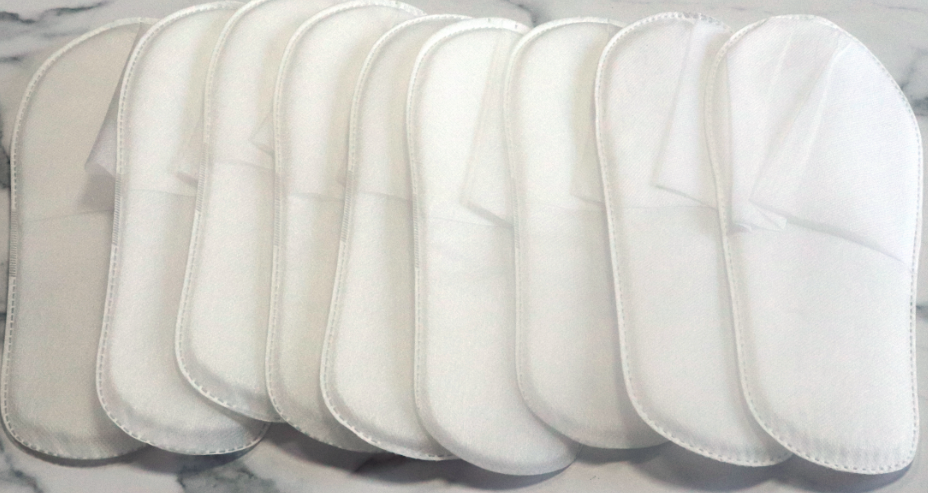

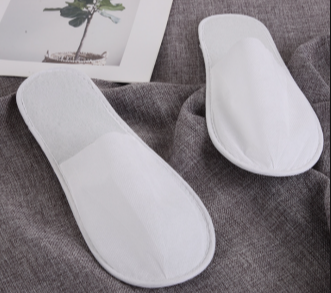

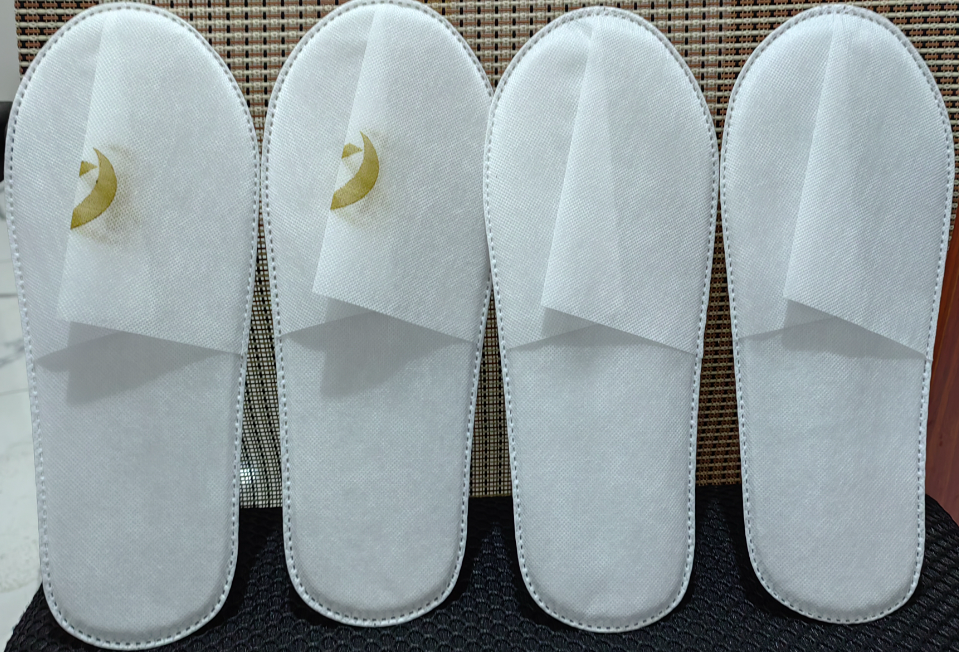

4. Slipper size(L*W):270*110mm，other sizes according to our customers;
5. Machine with auto-counting and will stop once reach setting production.
6. Machine with 2nos. Fabric feeding roll,each roll tension can be adjusted separately.
7. Suitable for PP non-woven fabric,Hot air/Air through non-woven, SAP paper, SS hydrophilic non-woven etc.

6. Main configuration

Name	Remark	Quantity	Place	Picture
Feeding device		1set 4pcs	China
Traction roll device		6sets	China
Ultrasonic system	18k 200	2sets	China
Welding device		2sets	China
Cutter device		3sets	China
Motor	1.5kw	1pc	China
Conveyor belt		2sets	China
Electrical equipment		1set	China
Control panel		1pc	China
Waste treatment device		2pcs	China

7.Spare Parts List

No.	Item Name	Quantity	Photo
1	Screwdriver	2pcs
2	hexagonal wrench	1set
3	adjustable wrench	1set
4	Screws and nuts	Bulky
5	Oil bottle	1pc
6	Tool box	1pc
