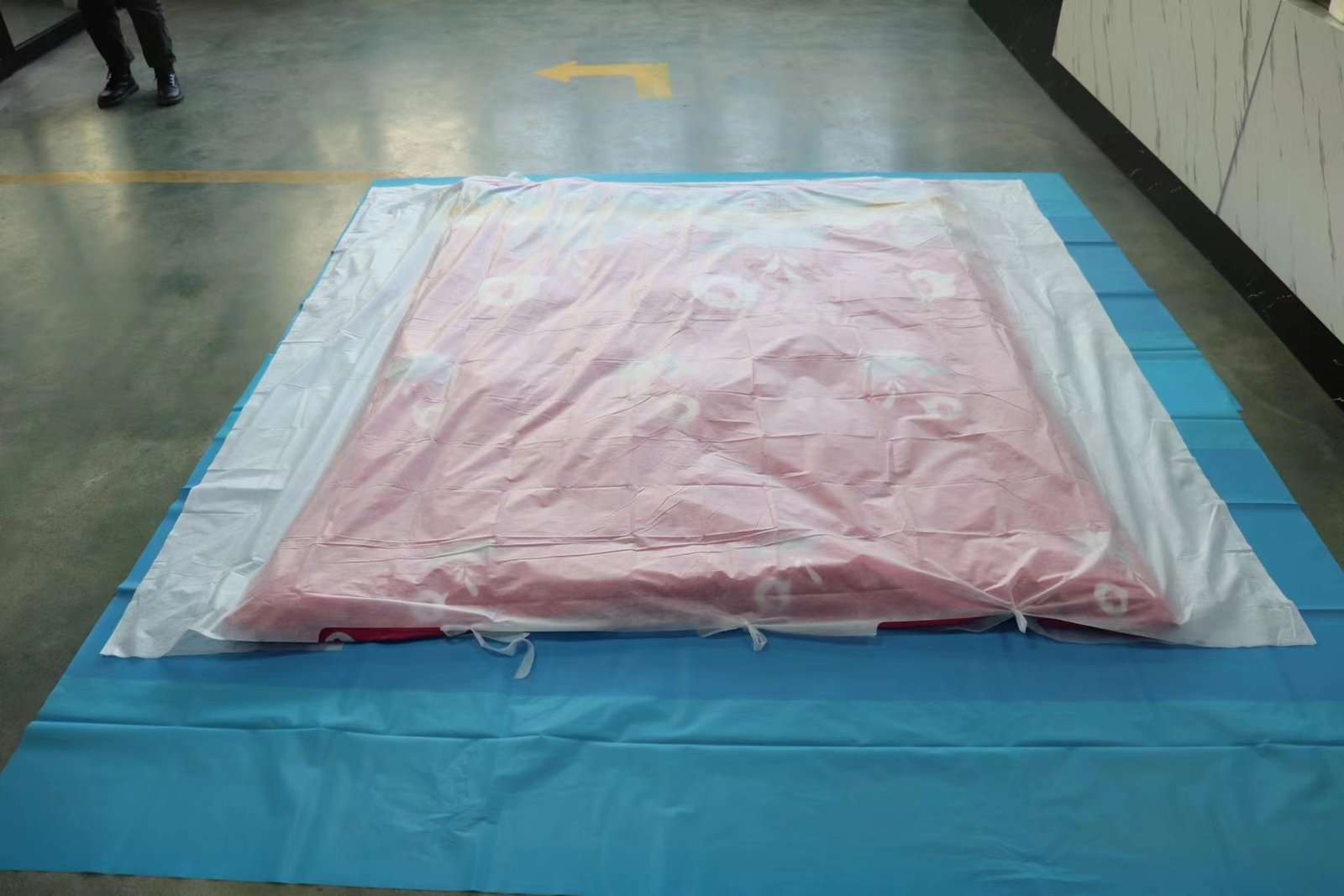

It is a specialized automatic machinery specializing in the production of disposable non-woven cloth quilt cover, we are equipped with PLC and touch screen, easy to operate. Suitable for aircraft, hospitals, hotels, automatic entry from the material to the finished product.
2.production program
Feed-wrapping edge-vertical welding-horizontal welding-cutting belt-fold-fold width-fold length-cut-conveying
Material report:
| No. | Material | Diameter(mm) | Tube Diameter(mm) | Width(mm) | Thickness(mm) | Weight(kg) |
| 1. | Non-woven | 500-1000 | Φ76.2 | 1600–2200 | 30-40gsm | 50-80 |

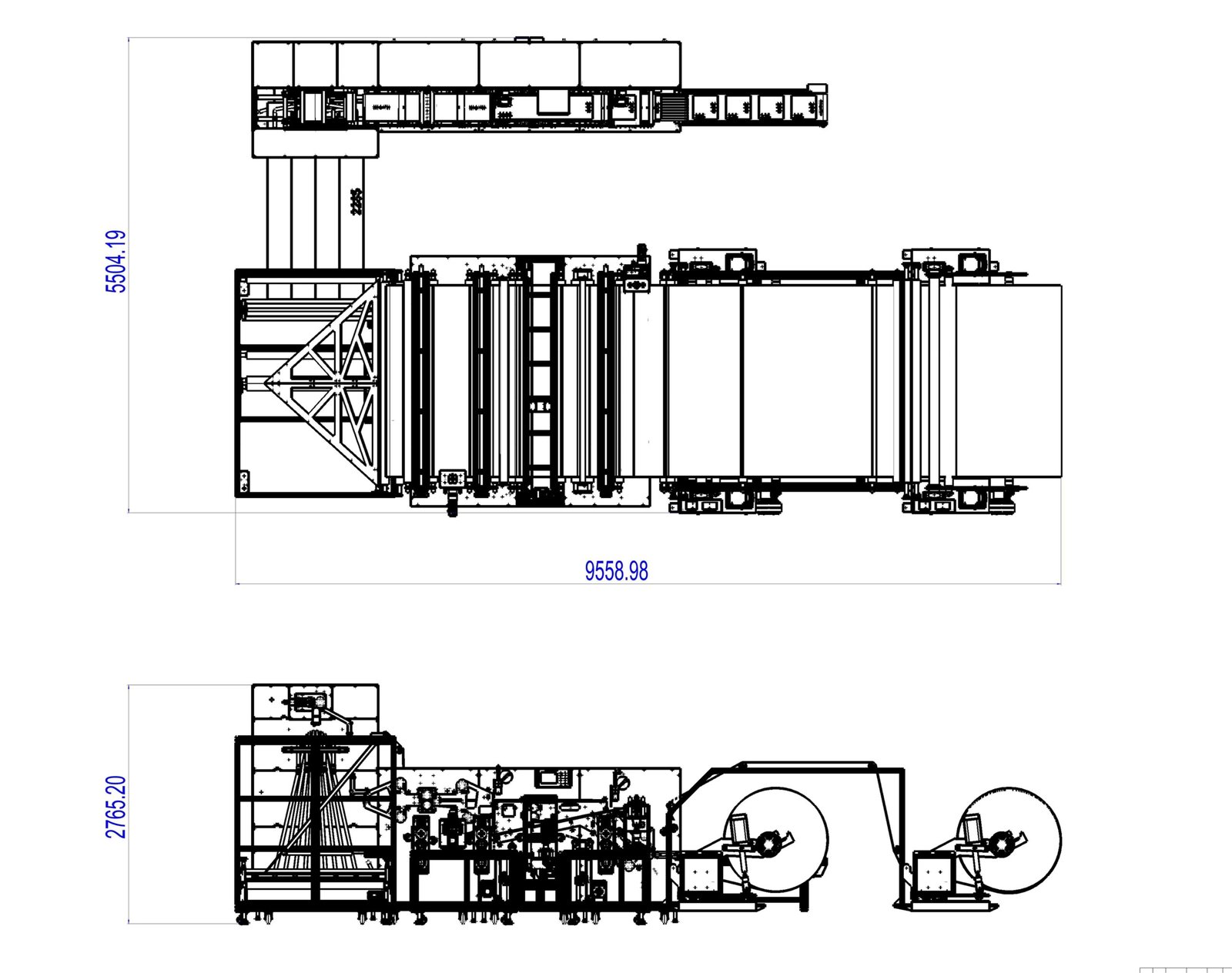

Main machine structure description:
| feeder unit | 1 set |
| Elastic belt welding device | 1 set |
| Angle welding device | 1 set |
| Vertical folding device | 1 set |
| Cutting device | 1 set |
| conveyor | 1 set |
Main component part list:
| name | take down | quantity | origin | photograph |
| feeding device | The pneumatic axis | 2 sets | China | |
| Magnetic powder tension control | 2 sets | China | ||
| Tension controller and correction deviation device | ` set | China | ||
| ultrasonic | 2 sets | China | ||
| welder | 2 sets | This factory | ||
| Cut belt device | ` set | This factory | ||
| electric relay | 4 sets | China | ||
| touch screen | Xinjie | ` set | China | |
| servomotor | Xinjie | 16 sets | ||
| servo drivers | Xinjie | 16 sets | China | |
| plc | Xinjie | 1 set | China | |
| Vertical folding device | ||||
| Horizontal folding device | ||||
| Triangle to fold | 1set | This factory | ||
| conveyor | This factory |
| No. | Item Name | Quantity | Photo |
| 1 | Screwdriver | 2pcs | |
| 2 | hexagonal wrench | 1set | |
| 3 | adjustable wrench | 1set | |
| 4 | Screws and nuts | Bulky | |
| 5 | Oil bottle | 1pc | |
| 6 | Tool box | 1pc |
