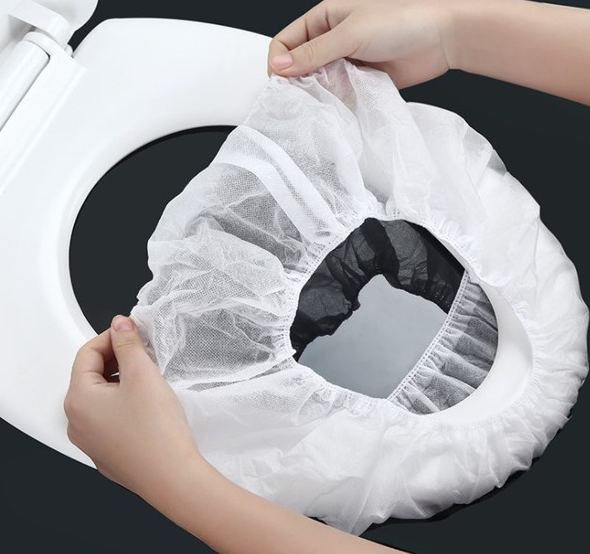

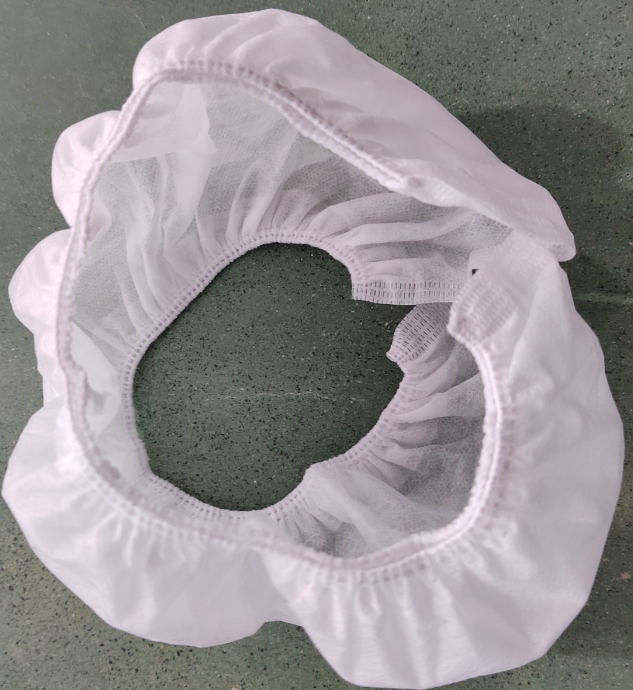

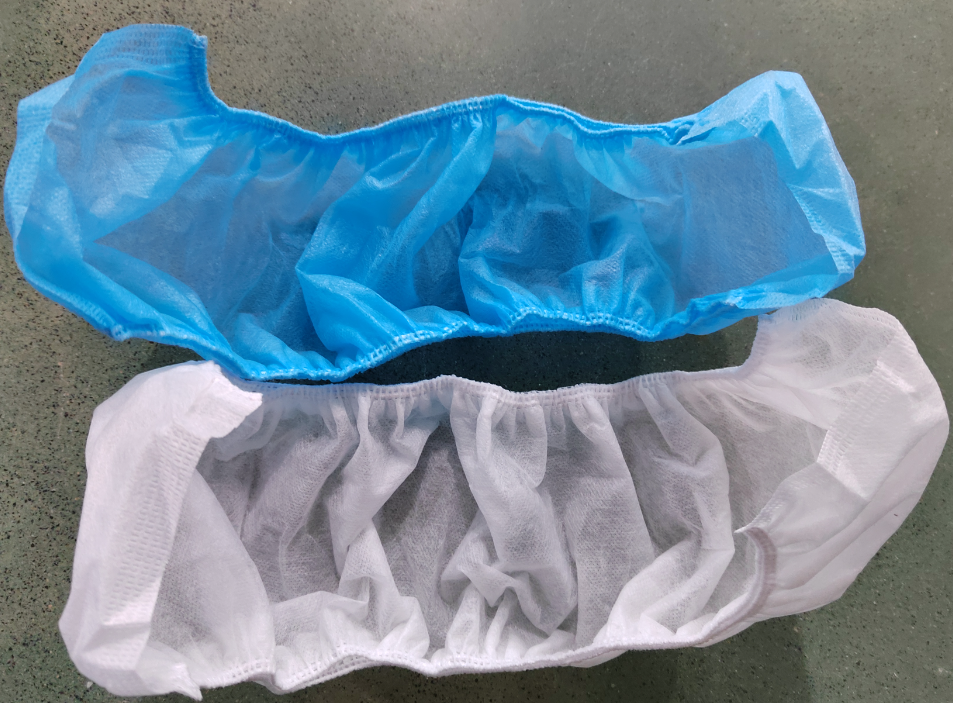

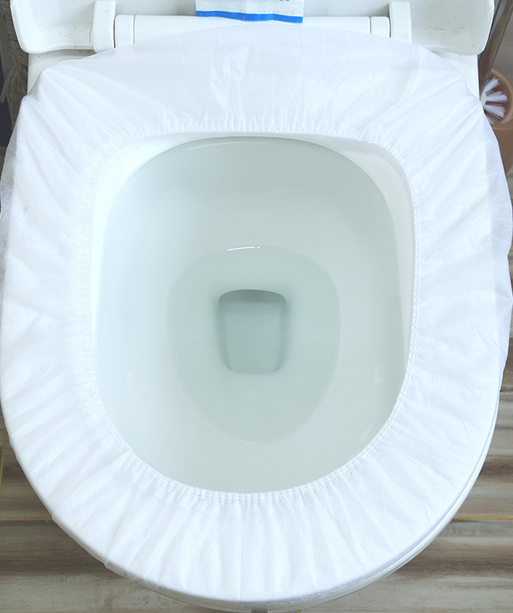

The disposable Non woven toilet seat cover making machine with package system is a full automation machine from raw materials feeding into the finished packaged product, more easily operation and save labor cost. It adopts servo motor which is more higher motion precision and high speed performance.
2. Features
1). Machine flexible and product disposable.

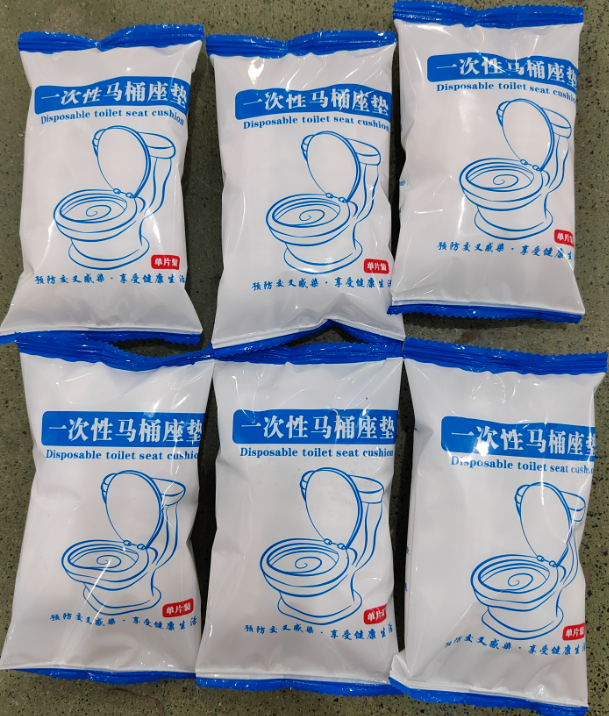

2). Delivery is the finished product.
3). Full automation and Easy to install.
4). Unique design and high speed .
| NO | Material | Diameter (mm) | Tube Diameter (mm) |
Width (mm) | Thickness (mm) |
Weight (Kg) |
| 1. | Non woven | 500-600 | Φ76.2 | 180 | 18-30g | 10-30 |
| 2. | ELASTIC | 4 | 25 |
| Material feeding unit | 4sets |
| Traction device | 3sets |
| Embossing wheel device | 4sets |
| Cutter device | 1set |
| Name | Remark | Quantity | Place | Picture |
| Feeding device | 4sets | China | ||
| Traction roll device | 3pcs | China | ||
| Ultrasonic | 18k | 3pcs | China | |
| Embossing wheel | 4sets | China | ||
| Cutter device | 1set | China | ||
| Servo motor | 3sets | China | ||
| Conveyor | 1set | China | ||
| electrical equipment | 1set | China | ||
| Control panel | 1pc | China | ||
| Magnetic particle controller | 1pc | China | ||
| Folding device | 1pc | China |
Package parts configuration
| Name | Remark | Quantity | Place | Picture |
| Feeding device | 1set | China | ||
| Conveyor | 1set | China | ||
| Chasing sensor | 1pc | China | ||
| Controller | 1pc | China | ||
| Packaging device | 1pc | China | ||
| Circuit board | 1pc | China | ||
| Servo motor | 2pcs | China |
7.Spare Parts List
| No. | Item Name | Quantity | Photo |
| 1 | Screwdriver | 2pcs | |
| 2 | hexagonal wrench | 1set | |
| 3 | adjustable wrench | 1set | |
| 4 | Screws and nuts | Bulky | |
| 5 | Oil bottle | 1pc | |
| 6 | Tool box | 1pc |
