The DEHENG DH-C disposable surgical drape making machine is configured to suit the finished drape design. Hole punching, adhesive tape application, reinforcement patch application and folding are all optional modules. Camera positioning, labeling and PE film lamination are also optional. Select the required modules when requesting a quotation. Actual production speed is 30–50 m/min.
The Medical Drape Making Machine is designed for producing a wide range of disposable surgical drapes and surgical packs used in hospitals, operating rooms, and sterile environments.
It supports various drape designs including:
Aperture drapes (hole drapes)
Fenestrated drapes
Ophthalmic drapes
Angiography drapes
U-drapes and full-body surgical sheets
Depending on the selected configuration, this machine can integrate automatic unwinding, folding, ultrasonic sealing, cutting, aperture forming, adhesive tape applying, and optional camera/labeling/PE film lamination depending on the model.
With high automation and stable performance, it helps medical consumable manufacturers increase production efficiency, ensure consistent quality, and reduce labor costs.
The machine is suitable for nonwoven fabric such as SMS, SMMS, PP, PE composite, and medical-grade laminate materials.
3.Samples:
Product size：
Unfold length 500-2000mm ,fabric roll width 450-1500mm
Fold length 150-250mm width 150-250mm
Machine characteristics
1.Machine Technical Data
2.Material Report
|
NO |
Material |
Diameter (mm) |
Tube Diameter |
Width (mm) |
Thickness |
Weight (Kg) |
|
1. |
non woven |
500-1000 |
Φ76.2 |
450-1500 |
20-60gsm |
50-80 |

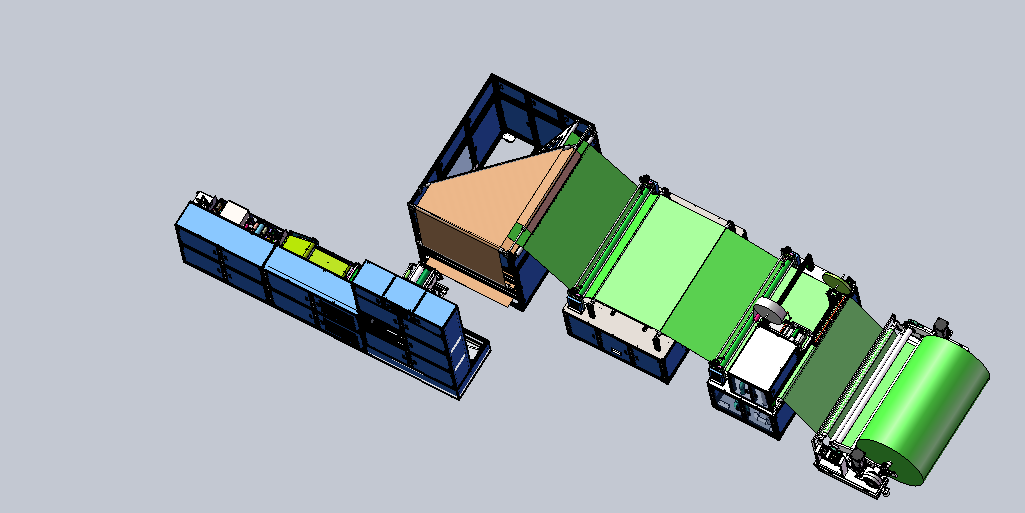

3.Main machine structure description
| Material feeding unit |
1set |
| Center hole adhesive paster adding device |
1set |
| Punching device for hole |
1set |
| Folding device |
1set |
| Cutting device |
1set |
| Conveyor belt |
1set |
Customizable tooling and cutting molds allow production of:
Surgical hole drapes
Universal medical drapes
Split drapes
Ophthalmic drapes
Angio drapes
Ortho drapes
Large surgical sheets with reinforcement zones
Servo-driven cutter ensures accurate and clean hole forming.
Optional camera positioning for precise patch/hole alignment.
With the corresponding optional modules, the machine can apply:
Adhesive PE film
Isolation tape
Sticky reinforced patches
Absorbent reinforcement zones
Seals borders, reinforcement areas, folding edges, and connection lines.
Ultrasonic bonding joins the specified areas without needle stitching.
Only 1–2 operators are needed.
Automatic stacking and counting available.
We can configure the machine based on your drape style:
Aperture size
Positioning
Film size
Tape width
Drape dimension
Folding method
Works with:
SMS
SMMS
Laminated sterile materials
PP+PE composite
Absorbent pads
PE film
Suitable for continuous 24/7 production.
Industrial PLC + servo motors for consistent performance.
Select the optional functions from your finished drape design. Hole punching, tape application, reinforcement and folding are optional modules; camera inspection, labeling and PE lamination are also optional. Confirm the selected functions in the quotation rather than assuming every module is included.
For related planning questions, review our surgical drape machine FAQ and surgical drape manufacturing project planning page.
Send the drape drawing, material specification, finished dimensions, hole position, tape details and required optional modules to sales@de-heng.com or dehengmachinery@gmail.com.
WhatsApp: 0086-18066372911. Include your target output so the surgical drape making machine configuration can be reviewed against the project requirements.
| Item | Details |
|---|---|
| Model | DH-Drape |
| Applicable Materials | SMS, SMMS, SMMMS, Non-woven fabric, Laminated PE film, Reinforced absorbent materials |
| Finished Product Types | Standard surgical drapes, universal drapes, aperture drapes, reinforced surgical drapes |
| Material Width | 600–2000 mm or more size (customizable based on drape size) |
| Production Speed | 15–28 pcs/min (depending on drape type & reinforcement) |

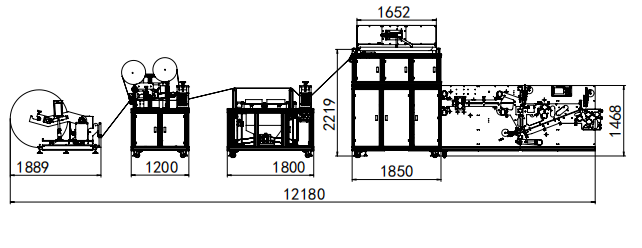

| Machine Size Range | 7–10 m (L) × 1.8–2.2 m (W) × 1.8 m (H) — varies by configuration |
| Machine Weight | 1500–2200 kg |
| Max Unwinding Diameter | 800–1200 mm |
| Fold Type Options | “Z” fold, “N” fold, Single fold, Multi-layer fold |
| Ultrasonic System | based on design |
| Punching Style | Cold knife / Hot knife / Ultrasonic punching (for aperture drapes) |
| Reinforcement Lamination | Optional PE film / absorbent layer / anti-fluid fabric |
| Edge Sealing Method | customized |
| Cutting Method | Servo-controlled rotary cutter or pneumatic cutter |
| Control System | PLC + Touch screen (Omron / Mitsubishi / Inovance optional) |
| Driving System | Servo motors for feeding, folding, welding & cutting |
| Power Supply | 380V, 3-phase, 50/60Hz (customizable to local standards) |
| Total Power Consumption | 8–12 kW (depends on modules) |
| Air Consumption | 0.6–0.8 MPa (500–800 L/min) |
| Operator Needed | 1 person |
| Production Mode | Fully automatic continuous running |
| Applications | Hospitals, surgery rooms, clinics, PPE factories, OEM drape production |
Our machine can produce:
Aperture/hole drapes
Fenestrated drapes
U-drapes
Universal sheets
Eye/ophthalmic drapes
Angio/ortho drapes
Customized OR drape designs
Yes. We support:
PE film with adhesive
Absorbent pad reinforcement
Nonwoven sticky patches
Custom-shaped isolation film
Please provide:
Drape size (length × width)
Aperture size & position
Film type & size
Tape type & width
Material GSM
Expected daily output
Voltage requirement
Sample photo or drawing
Depending on model and drape complexity, typically 10–25 pcs/min.
Only 1–2 operators for a full production line.
Yes, we support:
PP+PE
SMS laminate
PE protective film
Medical absorbent materials
Yes.
We provide:
Online video installation
Full operation manuals
Professional after-sales technical support
Optional onsite installation
Yes, send us your drape design, and we can produce samples for confirmation.
