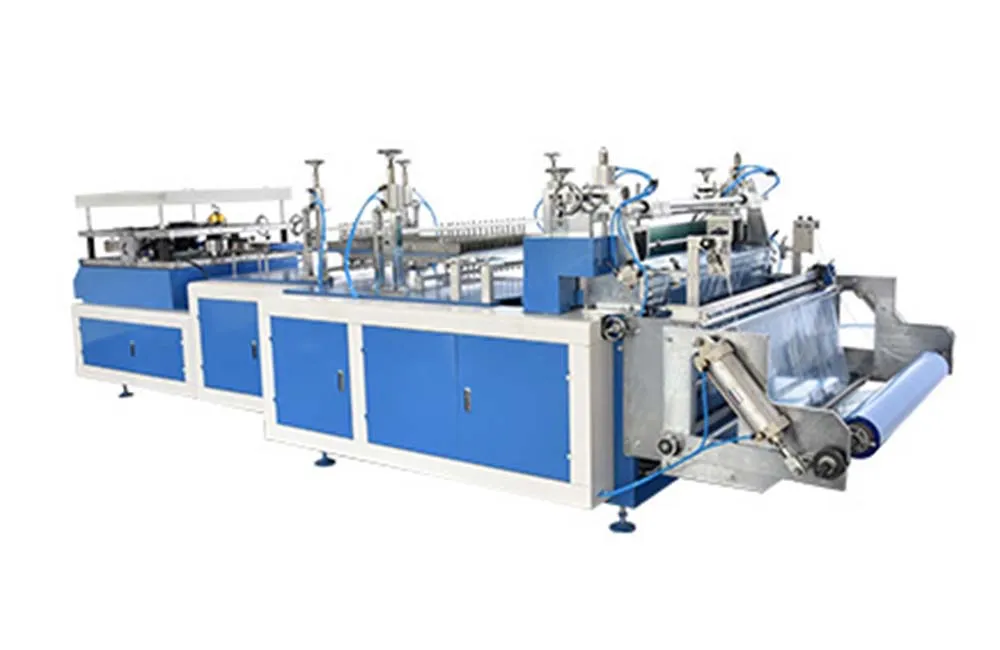

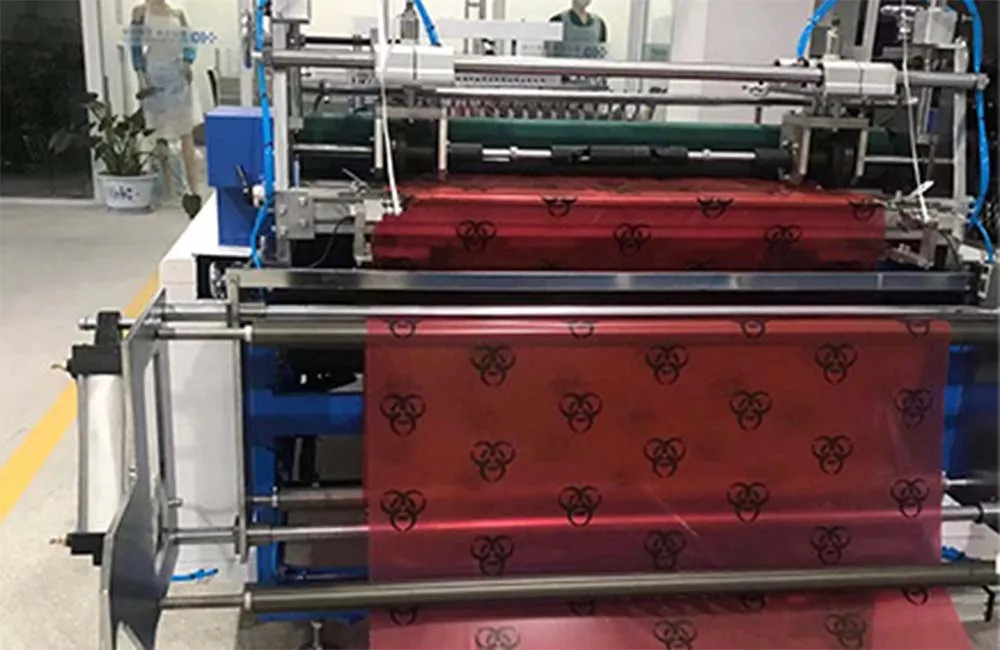

The DEHENG DH-CYT large dust cover making machine is configured for large protective covers, including dust covers, car covers and table covers. It supports multiple finished-product dimensions according to customer requirements. Cover design, material and size requirements are confirmed for the selected machine configuration.
The DH-CYT can be configured according to customer requirements for raw-material widths up to 3.6 meters (3600 mm). This is the material width; finished cover dimensions are confirmed for the selected product design.
The machine uses ultrasonic sealing. Provide the intended cover application and finished dimensions so DEHENG can confirm the required forming, elastic and cutting configuration. Supported dimensions and changeover requirements depend on the selected configuration.
Typical output is 40–180 pieces/minute, depending on the material, cover size, elastic tension and configuration. The machine can process PP/SMS nonwoven and PE/CPE film for cover applications including shower caps, bowl covers and large dust covers. Size changeover typically takes 2–3 minutes. Send your product designs so we can confirm the material setup, size range and functions for your order.
DEHENG can customize the machine according to your product sample and production requirements. The 3600 mm figure refers to maximum raw-material width, not a universal finished-cover size.
Discuss your cover project: 0086-18066372911 or send an equipment inquiry.
Send Emily a sample photo or drawing to start. Email sales@de-heng.com or dehengmachinery@gmail.com. Emily responds within 7 hours; a customized quotation follows review of your product and machine configuration.
| Item | Specification |
|---|---|
| Machine Name | DH-CYT Cover Making Machine |
| Applicable Materials | Confirm the required material for the selected configuration |
| Product Type | Large dust covers, car covers and table covers |
| Size Range | Customizable (multi-size support) |
| Production Speed | 40–180 pcs/min, depending on material, cover size and configuration |
| Elastic Control | Automatic tension control and inserting system |

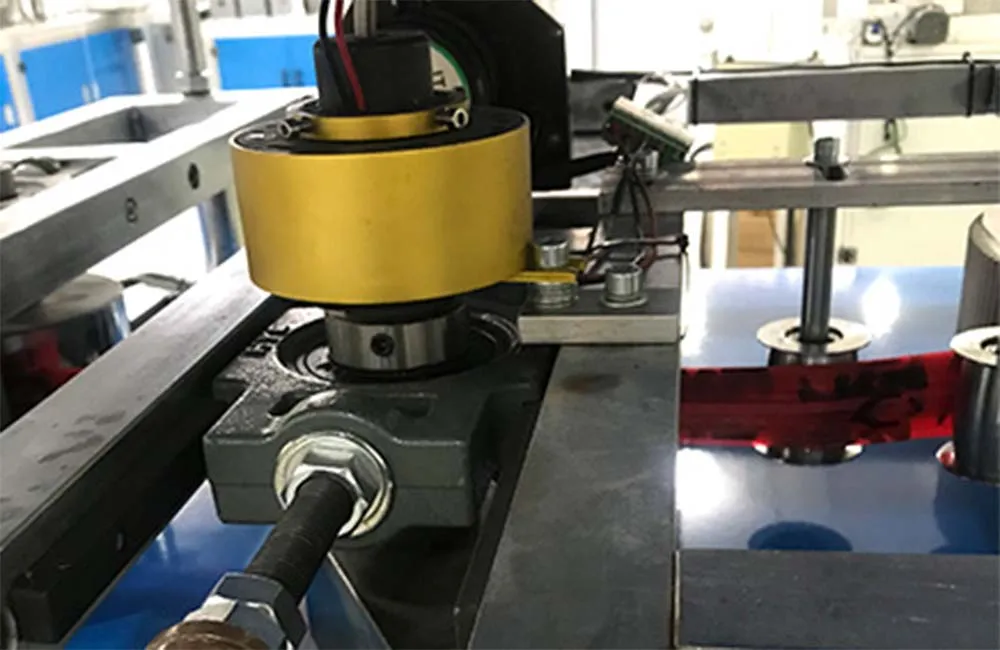

| Sealing Method | Ultrasonic sealing |
| Control System | PLC + Touch Screen HMI |
| Cutting Method | Cold cut / ultrasonic cut |
| Power Supply | 380V / 220V, customizable according to customer requirements; 50–60 Hz |
| Air Requirement | 0.5–0.6 MPa |
| Machine Weight | Approx. 1200–1500 kg |
| Machine Dimensions | 4200 × 900 × 1300 mm (adjustable) |
| Maximum raw-material width | Up to 3600 mm, configured according to customer requirements |
The machine can run nonwoven fabric (PP/SMS) and plastic film materials such as PE, CPE, making it suitable for different product categories.
One single machine can produce multiple types of covers, including:
Shower caps
Dust protection covers
Instrument & equipment covers
Foot massage tub covers
Table covers / bowl covers
General disposable elastic covers

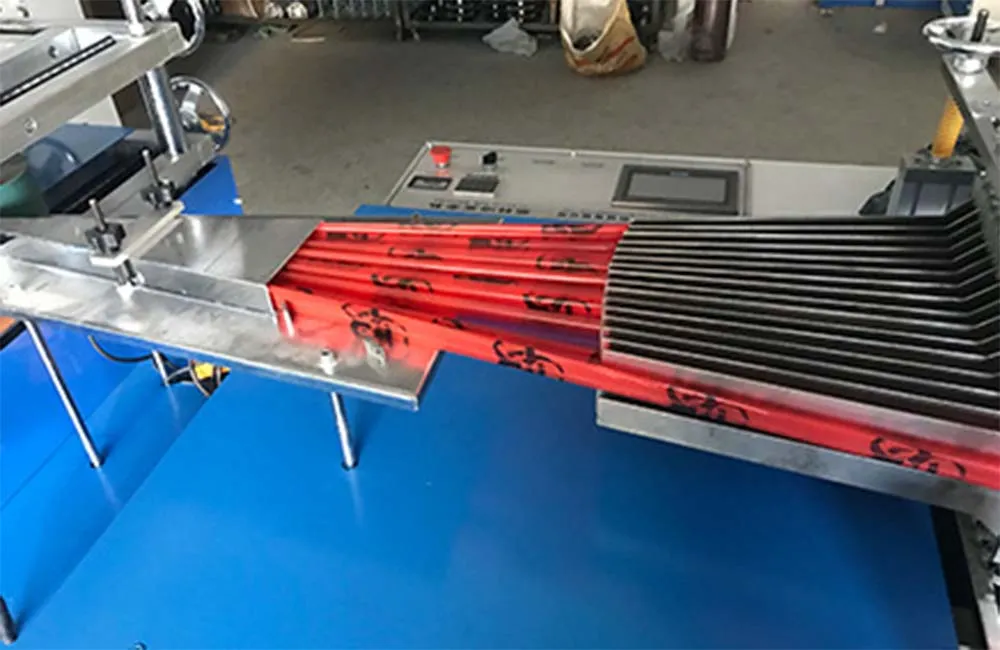

Yes. It supports multi-size production by adjusting the folding parts and elastic length. Switching sizes usually takes only 2-3mins, no complex setup required.
The typical running speed is 40–180 pcs/min, depending on:
Material type
Product size
Elastic tension
Ultrasonic sealing settings
The machine is fully automatic and needs only 1 operator to load fabric, monitor running status and collect the final covers.
We provide 1-year warranty for all key electrical and mechanical components, including:
Ultrasonic system
Motors
Sensors
PLC & HMI
Electrical parts
After the warranty period, lifetime free technical support is included.
Yes. We offer:
Online installation guidance
Video tutorials
Remote technical support (WhatsApp/WeChat/Zoom)
If needed, onsite engineer service is also available (travel cost covered by customer).
We support you through:
24–48 hour online troubleshooting
Remote parameter adjustment
Video diagnosis
Spare parts replacement
Step-by-step fault guide
Emergency spare parts can be shipped the same day.
We keep standard spare parts in stock, including:
Ultrasonic horns
Blades
Elastic feeding parts
Belts
Sensors
Most parts can be shipped within 24 hours by DHL/FedEx.
Yes. We support customization such as:
Product size
Material compatibility (plastic or nonwoven)
Elastic width
Folding structure
Speed and machine length
We also provide upgrade and improvement services for older machines.
