This DEHENG machine configuration produces masks with ear loops at 80–100 pcs/min. Specify the required mask design and material-layer structure when requesting a quotation.
Discuss your mask production project with DEHENG. The required machine configuration is confirmed from the mask drawing, material-layer structure, nose-strip design and strap requirements.
For a headband application, review the separate N95 headband mask making machine and confirm the required configuration.
Email: sales@de-heng.com or dehengmachinery@gmail.com.
This ear-loop configuration is offered for manufacturers planning the mask design shown in their sample or drawing. The confirmed production speed is 80–100 masks per minute. It is a separate configuration from the headband machine, so the strap design should be decided before the equipment specification is finalized.

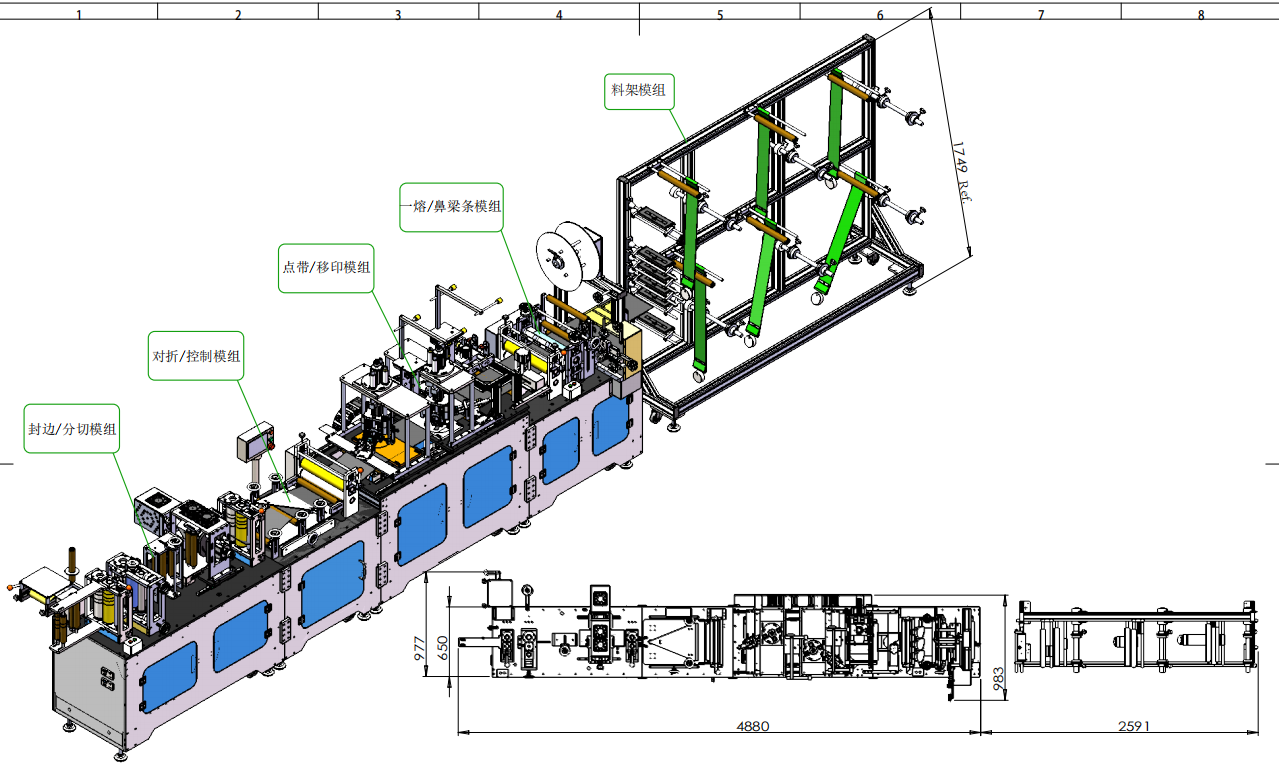

Use the machine specification table when preparing the installation plan. The listed equipment dimensions are 7400 × 1350 × 1980 mm, and listed power is 11 kW. Power supply can be configured for 380V or 220V according to customer requirements. Provide the electrical supply available at your factory when discussing the project.

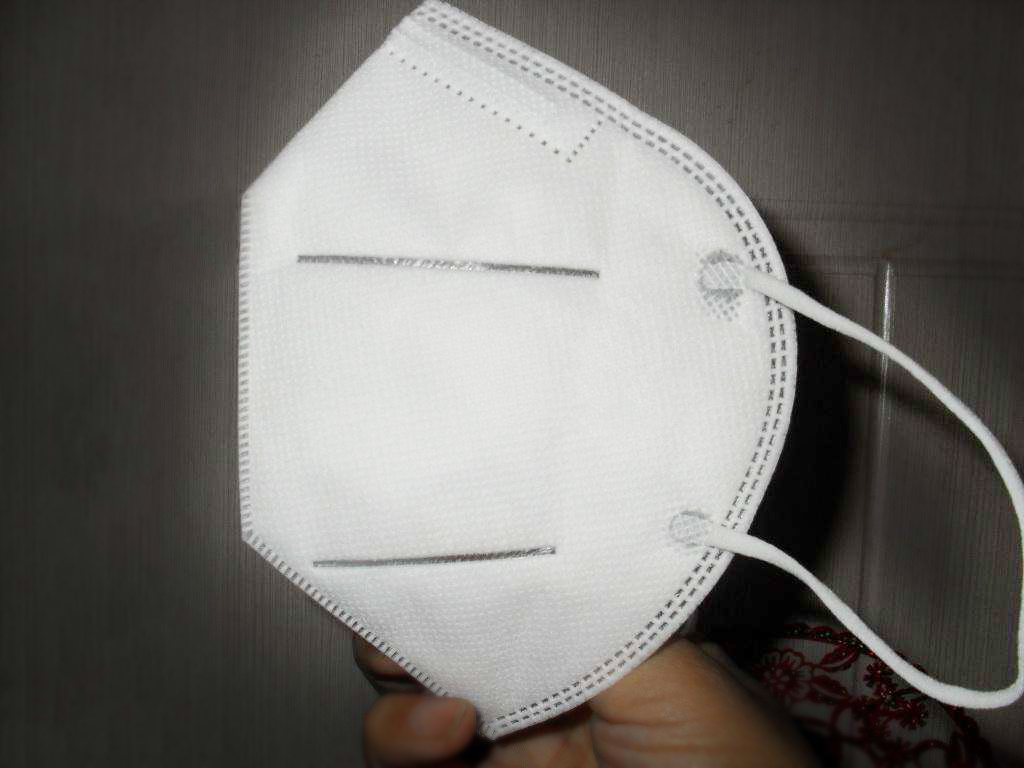

Start with the finished mask rather than a machine name alone. A clear drawing should show the overall dimensions, fold or shape, nose-strip position and ear-loop attachment positions. If a finished sample is available, include front, back and side photographs with the inquiry.
List the material specification for every layer, including composition and weight, and identify the intended layer sequence. Include the nose-strip dimensions and ear-loop material and length. These details allow DEHENG to review the proposed configuration against the actual product you want to manufacture.
The N95 mask making machine is listed at 80–100 pcs/min for this ear-loop configuration. Tell DEHENG the output needed for your project and whether your quotation should consider collection or packing requirements. Any additional handling functions should be confirmed in the configuration rather than assumed to be included.
For several product designs, submit each drawing separately. Identify which design is the production priority and ask which tooling or settings are required for the others. This keeps the quotation tied to the intended products and helps clarify changeover requirements before ordering.
This page describes the ear-loop version. The headband version has its own product page. Send the strap design you need so the quotation refers to the correct machine.
The confirmed speed is 80–100 masks per minute. Include your required output together with the mask drawing and material specifications when requesting a configuration.
Provide the finished sample or drawing, material-layer details, nose-strip specification, ear-loop specification and output requirement. Also identify the installation country, available electrical supply and any downstream collection or packaging needs.
Yes. A 380V or 220V supply can be configured according to customer requirements. Confirm the installation-site requirements with DEHENG as part of the equipment specification.
| Product Name | Automatic N95 Type Mask Making Machine |
| Machine construction material | Aluminium alloy |
| SIze | 7400*1350*1980mm |
| Voltage | 380V / 220V, customizable according to customer requirements |
| Power | 11KW |
| Pressure | 6kg/cm2 |
| Yield | 80–100 pcs/min |
| Control Mode | PLC |
