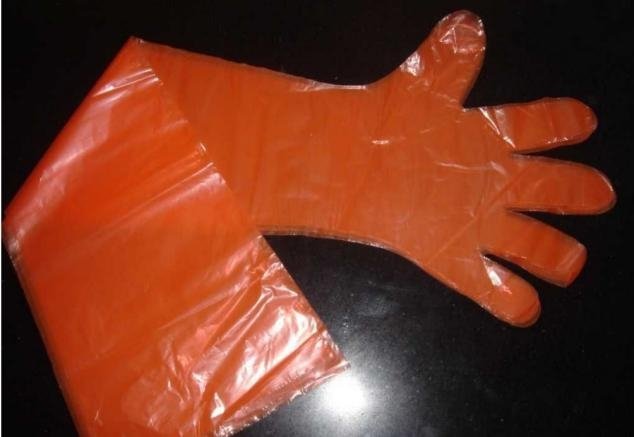

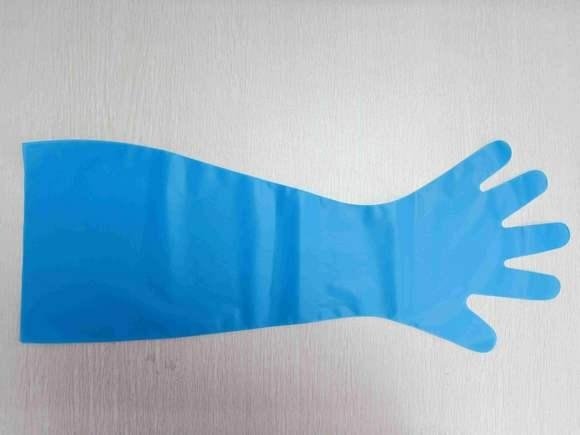

The DEHENG long-arm glove making machine produces disposable long-arm gloves from plastic film. Material options include PE, HDPE, LDPE, CPE and EVA; the selected film specification is confirmed for your product.
Operating speed is 30–60 pcs/min. Glove length can be customized according to customer requirements. PLC and touchscreen control support machine operation.
| Item | Specification |
|---|---|
| Model | DH-STJ-1000 |
| Production speed | 30–60 pcs/min |
| Glove length | Customizable according to customer requirements |
| Power supply | 380V / 220V, customizable according to customer requirements |
| Control | PLC and touchscreen |
Total power, machine dimensions and weight are confirmed for the selected configuration.
Send a glove drawing or sample, film type and thickness, required glove length and target output. Include any collection or packing requirements so DEHENG can confirm your configuration.
Discuss your project: 0086-18066372911 or send an equipment inquiry.
Material report:
| NO | Material | Diameter （mm) |
Tube Diameter （mm) |
Width （mm) |
Thickness （mm) |
Weight （kg) |
| 1 | PE | 300-500 | Φ76.2 | 320 | 0.02-0.08 | 40-60 |
Main machine structure description:
| Name | Quantity | Origin | Pic |
| Main motor 2.2KW | 1 set | China | |
| Unwinding motor 400W | 1 set | China | |
| Stepper motor 350W | 2 sets | China | |
| Silicone tape | 1 piece | China | |
| Key parts bearings | China | ||
| Frequency converter 2.2KW | 1 set | China | |
| Static Eliminator | 1 piece | China | |
| touch screen | China | ||
| PLC | 1 piece | China | |
| Full iron body | |||
| Main computer control box | 1 piece | ||
| Temperature Controller | 2 pcs | China | |
| Switch button | China | ||
| Driver | 2pcs | China | |
| Cylinder | 2pcs | China | |
| Relay | China |
Main component part list:
| Name | QTY | Origin | PIC |
| Metal Springs | 10pcs | China | |
| Heat Insulation cloth | 2pcs | China | |
| Horizontal heating tube | 4pcs | China | |
| Thermocouple | 1pc | China | |
| Heating tube | 2 | China | |
| Tools | China |
