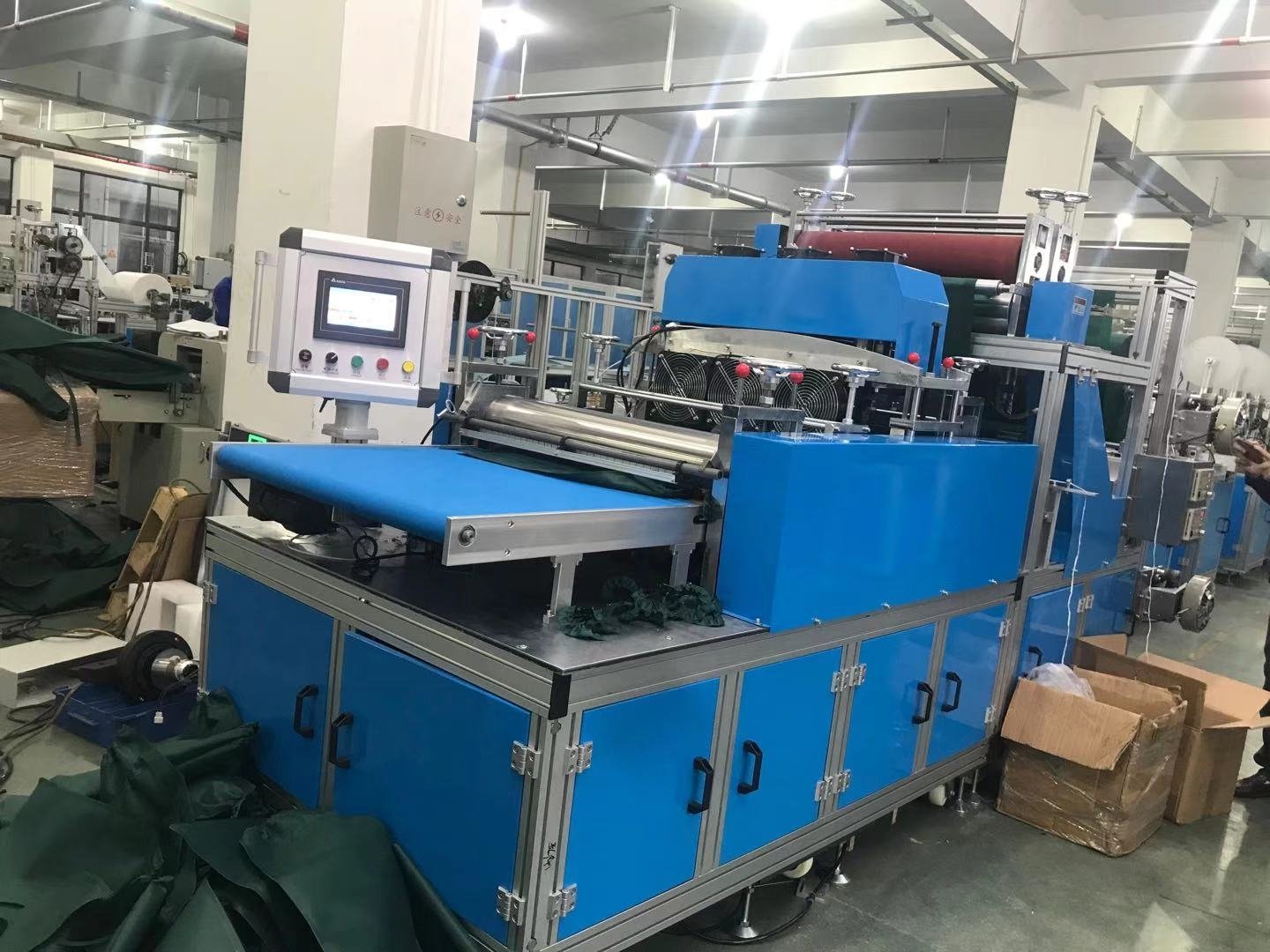

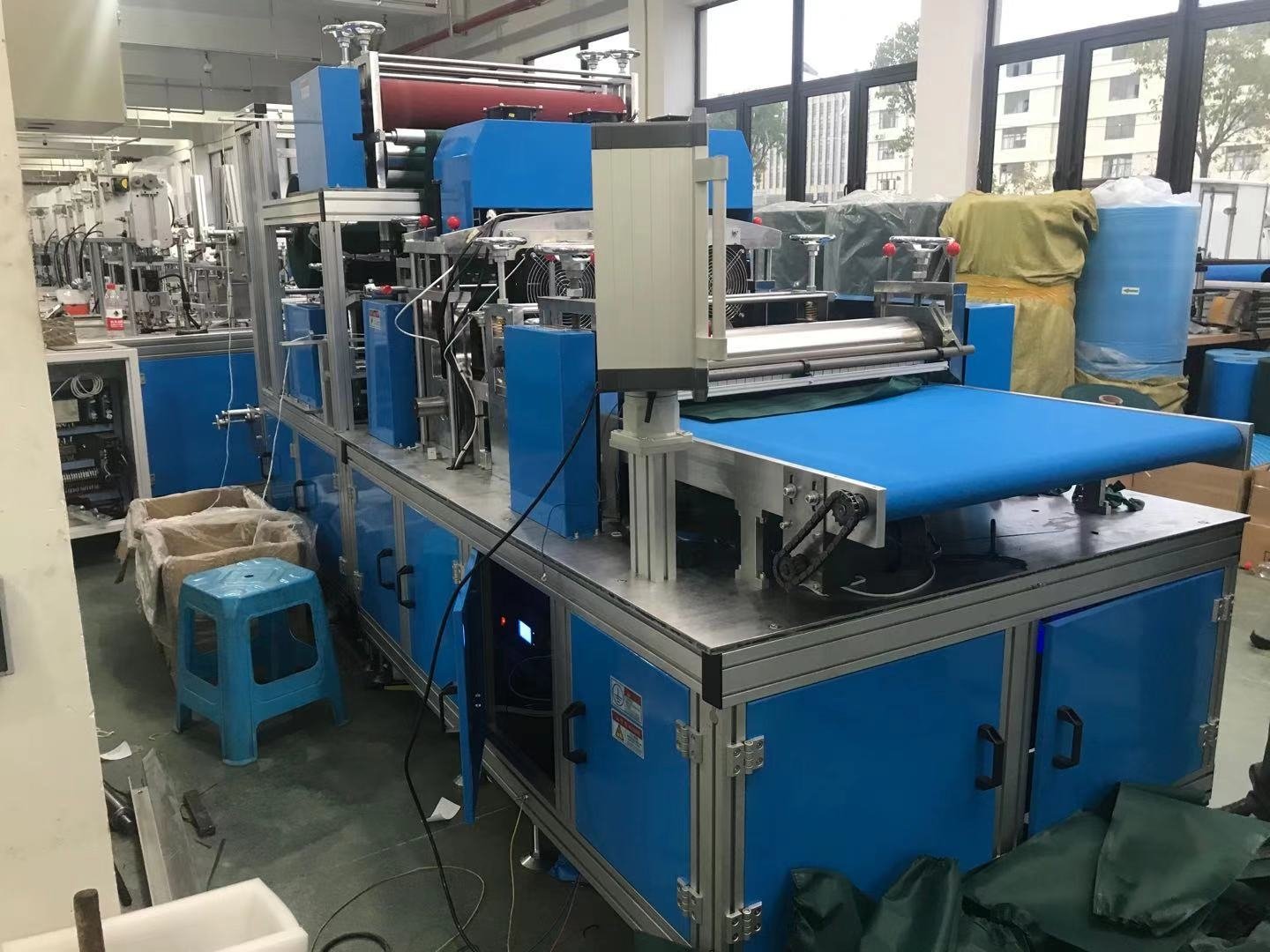

The DEHENG automatic protective gown sleeve making machine performs sleeve welding and cutting, together with elastic welding. It is designed for manufacturers preparing sleeve components for protective gown production.
PLC control supports machine operation. The listed production capacity is 40–70 pieces per minute, with one operator required.
|
Automatic Protective Gown Sleeve Making Machine |
|
| Machine Size: | 3700*1600*1800mm |
| Capacity: | 40–70pcs/min |
| Machine weight: | 1500KG |
| Voltage: | 380V / 220V, customizable according to customer requirements |
| Power: | 10kw |
| Machine Material: | Alloy Aluminium |
| Control System: | PLC |
| Operator: | one person |
| Production time: | 15-20 work days |
| Offer validity: | 30days |
| Payment Terms: | by T/T, 50% deposit before production, 50% balance before shipment |
| Packaging: | Exported Wooden Case |
| Remark: | Machine function: —Sleeve welding and cutting; —Elastic welding. |
Send your sleeve sample or drawing, material specification, finished dimensions, elastic requirements and target output. DEHENG will confirm the configuration for your product.
Discuss your gown sleeve project: 0086-18066372911 or send an equipment inquiry.
Explore the protective gown body making machine and gown folding and packing machine when planning the other stages of your production process.
The gown sleeve making machine produces sleeve components. The gown body, sleeve joining and downstream folding or packing are separate stages to include in the production plan. Start with the finished gown design so the sleeve dimensions and joining requirements can be considered together.
Explore the complete disposable surgical gown production solution for the relationship between these stages. For joining operations, review the ultrasonic sewing and welding machine. Confirm the actual production arrangement for your material and finished product.
Provide the finished sleeve length, upper opening dimensions and wrist opening dimensions. Show the intended shape in a drawing or supply a physical sample. Include the material composition, weight and number of layers, as well as the required elastic specification.
If several gown designs are required, send the sleeve drawing for each design. Identify the main production size and ask which adjustments or tooling are needed for the others. A list of garment sizes alone does not fully describe the sleeve shape or the joining requirements.
The configuration listed on this page has a stated capacity of 40–70 pcs/min. Tell DEHENG your required finished-gown output as well as the number of sleeve components needed. Match the sleeve stage with the body and joining stages when preparing your production arrangement.
Listed machine dimensions are 3700 × 1600 × 1800 mm, and listed power is 10 kW. A 380V or 220V supply can be configured according to customer requirements. Provide the installation-site electrical supply and discuss the layout before finalizing the configuration.
No. This gown sleeve making machine produces sleeve components. Include separate gown-body production and sleeve-joining equipment in the process discussion.
The listed functions are sleeve welding and cutting, together with elastic welding. Submit your sleeve sample and elastic requirements so DEHENG can confirm the configuration for the intended design.
Provide the finished dimensions and drawing for every required size. State the expected production quantity for each design and ask which settings or tooling are needed when changing products.
Confirm the sleeve drawing, material specification, elastic design, required output, machine configuration, installation requirements and any collection or packing needs. Commercial terms and delivery timing should be confirmed in the project quotation.
Send your sample or drawing to sales@de-heng.com or dehengmachinery@gmail.com. Include the product dimensions and material details so the quotation can address your actual production requirement.
