Disposable Gown Folding and Packing Machine

The DEHENG DH-B disposable gown folding and packing machine folds garments and packs them into plastic bags. It is designed for surgical gowns, protective clothing and cleanroom clothing within the specified size range.

An operator manually loads and arranges each garment on the feeding conveyor. The machine then carries out the folding and bagging stages. Folding dimensions can be adjusted to suit the garment.

Garment material and shape must be tested before a configuration is confirmed. Garments with long fibers or multiple thin ties may require special evaluation.

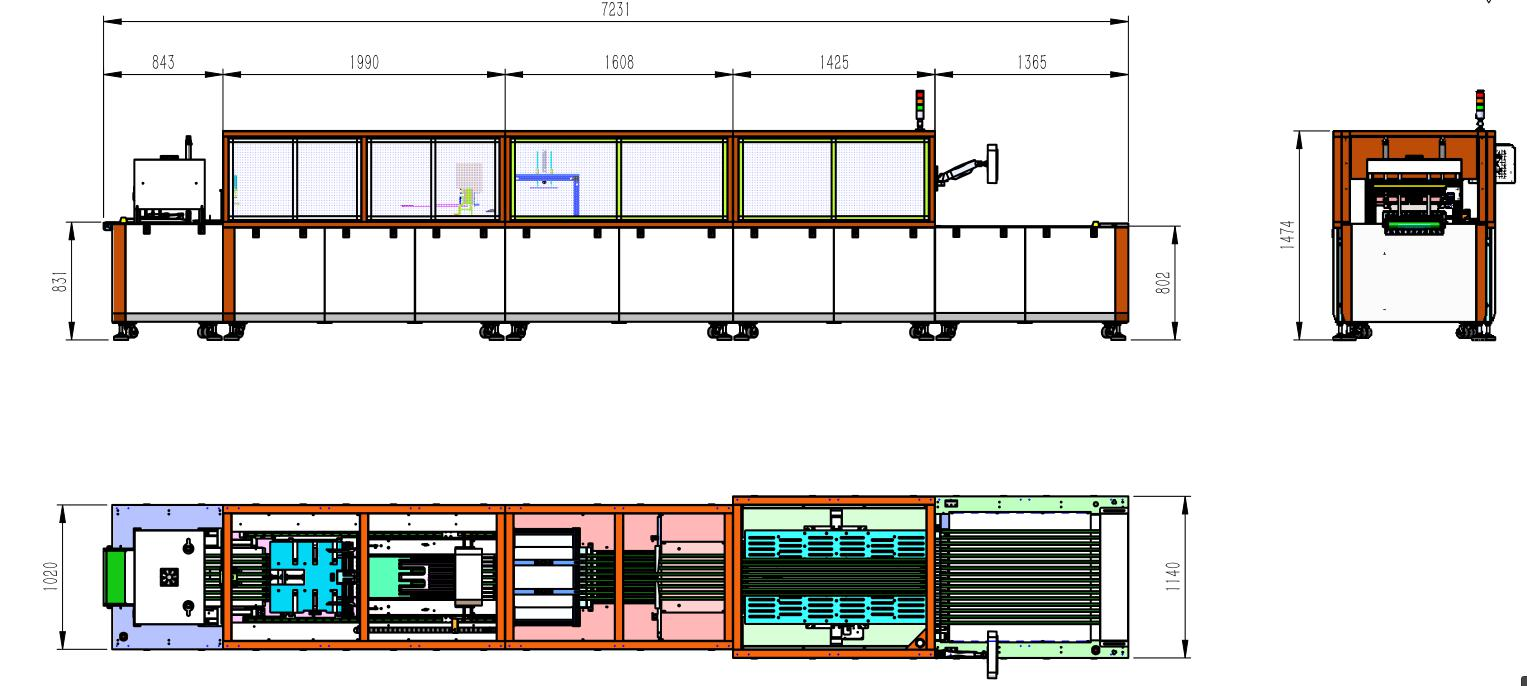

Ⅱ.Schematic diagram

Folding and Packing Process

1. Manually load and arrange the garment on the feeding conveyor.
2. Start the machine to convey the garment through the folding units.
3. Adjust the folding length and width to suit the required finished size.
4. Transfer the folded garment to the bagging unit; thicker garments are pre-compressed before bagging.
5. The machine completes bagging, sealing and cutting, then discharges the packed garment.

Garment and Bag Size Ranges

Compatible bags: PP, PE and OPP self-adhesive envelope bags. Confirm suitability with actual garment and bag samples.

5. 5.Mainmachine structure description

Ⅳ.Configuration List：

Spare parts:

Plan the Gown Folding and Packing Machine Stage

This equipment handles garments after they have been made. It is a downstream process, separate from gown-body production, sleeve production and joining. Review the complete surgical gown production solution when planning how these stages fit together.

The gown folding and packing machine requires an operator to load and arrange each garment. Describe the condition of the garment at this point, including ties, cuffs and any loose sections. The garment sample is important because the shape and material affect handling and the folding arrangement.

Prepare Garment and Bag Samples

Send the unfolded garment dimensions and required folded dimensions, together with the intended bag sample. Include the bag width, length and material specification. A photograph of a packed garment can help explain the required finished appearance, but actual samples are needed to confirm suitability.

If several garment designs are planned, submit each design separately. Identify the main production product and the required quantities. Ask which adjustments are required between designs, and confirm the proposed configuration for the selected garments and bags.

Frequently Asked Questions

Is garment loading automatic?

No. An operator manually places and arranges the garment on the feeding conveyor. The machine then performs the configured folding and bagging stages.

Can this machine make the gown itself?

No. The gown folding and packing machine is for downstream garment handling. See the gown body making machine and gown sleeve making machine for earlier production stages.

What needs testing before configuration?

The actual garment and bag samples should be evaluated. Include material, shape, ties and required folded dimensions. Garments with long fibers or several thin ties require particular attention in the configuration discussion.

How do I request a quotation?

Send garment samples, bag samples, unfolded and folded dimensions, target output and installation-site requirements. Confirm the agreed product range and configuration in the quotation.
